New Design Indoor HD Flexible 3D Ball Sphere Commercial LED Display
Screen
Quick Detail:
1)LED: well-known international brand,with wide viewing angle
,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba,
avoidable the defective phenomena, such as dark bright, virtual
light and so on.
3) Power supply: industrial-strength brand.The power maximum power
resere of 20% the space , the range of voltage fluctuation is less
5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of
power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be
finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Description:
Modular small-unit and flexible design,makes possiblity of more
complicated shapes of video show.
Assembling screen with modules directly,saving time and effort,easy
operation.
Magnet connection,apt to assemble & disassemble,maintain & replace.
No metal frame design, greatly reduce the screen weight.
Strict quality control and long-term application experience
verified the stablity and excellent performance.
Widely applied in shaped stage background/exhibition/shopping mall
etc.
Specification:
| Specificaion | Indoor p3 soft module | | Pixel pitch(mm) | 3 | | Pixel Density(dot/m2) | 111111 | | Bending time | 1000 without break | | LED configue | 1r1c1b | | LED type | SMD2121 | | Brightness(cd/n2) | 800-1200 | | Drive mode | 24s | | Drive IC | MBI5124/ ICN2153 | | Grayscale | 14 bit | | Refresh Rate(HZ) | 1920/3840H | | Frame Rate(HZ) | 60 | | Brightness Ajustment | manual/automatic/remote control | | Color Temperatur | 9000±500k | | Best Viewing Distanc | ≥2.5m | | Module dimension(mm) | 240x120x7 | | Module weight(kg/pc) | 0.2 | | Mdoule Resolution(dot) | 96x48 | | Cabinet Dimension | Randomly splicing | | Working Voltage | AC 220 | | Avg. Power Consumption (w/m2) | 260 | | Max. power Consumption (w/m2) | 600 | | Serive access | Front and rear | | Ip grade | IP 30 | | Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation | | Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH | | Lifetime (H) | Lifetime (H) | | Compliant Standard | CCC,CE |
|

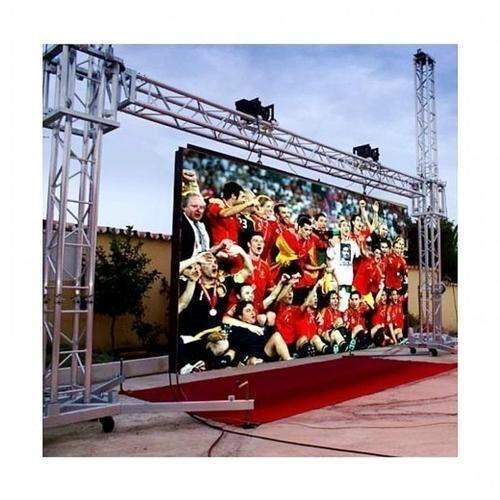

Product Image:
Advantage:
Flexible and bendable
The flexible chassis and soft cover design enable user to bend it
freely, so it can be assembled at any any uneven or irregular
locations.
Super thin and light
MANNLED Flexible LED Sign is one of the thinnest & lightest LED
signs in the world with special materials and advanced technology.
Every module is only 9mm thick and has a weight of 280g.
Very easy to splice, install and maintain
Modularization design and no other connected cables make the
installation so easy.
User just mounts iron sheet or magnetic product on the surface in
the first, then stick
the Flexible LED sign on the surface .
High brightness
MANNLED Flexible LED Sign makes use of the high-brightness SMD method,
which makes it tremendously excellent in luminance, uniformity,
maintainability compared with the traditional LED dot-matrix
displays.
Wide application
Enterprise reception ,appliances stores, sports stores, exhibition
hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping
malls, railway stations, telecommunications, government, offices,
monitoring, schools, restaurants, hotels, entertainment.
Features:
1. special design and advanced SMT technology improves the heat
dissipation
2. with high fresh rate controller, guarantee that no scan line
when taking photos
3. regular shape and special shape(such as curve,round) can be
designed
Our Service:
(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect
components for free without any man-made damage, but you should pay
for shipping fee, both back and forth .After 2 years, we only
charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for
one week free of charge training, which includes the software
operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to
guide the installation for you. But the relevant cost should be
paid by your company such as visa, hotel, food, both trip plane
ticket, and also USD150/day/staff (from our engineer’s departure
from Shenzhen) and help to arrange our staff's visa.
Packing & Delivery
For Iron cabinet of indoor and outdoor LED display screens, we use
wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display
screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die
casting aluminum cabinets
By air or by sea! FOB or CIF
Trade Terms:
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2. Shipping port: Shenzhen. China.
3. Shipping freights are quoted according to your requests.
4. Delivery time:5-15 working days.
5. 2 years warranty ,lifelong maintaining. In the Maintenance
period, free of all maintenance charges. After Maintenance
period,only charge the material costs fees.
FAQ:
Q1:LED display models are generally expressed in PX, such as P2 P3
P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller,
led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the MANNLED screen, it is determined mainly by the viewing
distance, the size of the display screen, the desired effect and
the customer budget.
Q3: To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of the display, the main use, the
viewing distance, the scene photos, special requirements,then I can
provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,free remote debugging. We
can also send our engineers to the site to guide the installation
if needed.
