P3.91mm Interactive Video Stage Dance Stand Floor LED Display
Screen
Quick Details:
Floor tile screen with built-in sensor system
Can follow the human activity to present the picture
Enhance the sense of immersion and active participation
Like opening a unique journey of interactive display magic
Description:
The LED floor tile screen adopts a man-machine interaction design
to realize the interaction between people and the display screen.
Professional production technology, to provide you with
high-quality interactive LED floor tile screen.Special floor tile screen module, non-slip, wear-resistant,
waterproof and UV-resistant.
Specification:
| Usage | indoor | outdoor | outdoor |
| Pixel Pitch | 2.6 mm | 3.9 mm | 4.8 mm |
| LED Type | SMD1515 | SMD1921 | SMD2525 |
| Physical Density | 147,456 dot/m² | 65,536 dot/m² | 43,222 dot/m² |
| Panel Size (W×H×D) | 500x500x87 mm | 500x500x87 mm | 500x500x87 mm |
| Panel Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Panel Weight | 7.5 kg | 7.5 kg | 7.5 kg |
| Panel Flatness | ≤0.10 mm | ≤0.10 mm | ≤0.10 mm |
| Color Depth | 16 Bit | 16 Bit | 16 Bit |
| Brightness | ≥1000 cd/㎡ | ≥4000 cd/㎡ | ≥4000 cd/㎡ |
| Viewing Angle | ≥140° (H) / 140° (V) | ≥140° (H) / 120° (V) | ≥140° (H) / 120° (V) |
| Scanning Mode | 1/32 | 1/16 | 1/13 |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Input Voltage AC | 110~220V | 110~220V | 110~220V |
| Max. Power Consumption | ≤500 w/㎡ | ≤800 w/㎡ | ≤800 w/㎡ |
| Ave. Power Consumption | ≤160 w/㎡ | ≤268 w/㎡ | ≤268 w/㎡ |
| Working Temperature | -10℃～+40℃ | -10℃～+40℃ | -10℃～+40℃ |
| Working Humidity | 10%～90%RH | 10%～90%RH | 10%～90%RH |
| Configurations of Dance Floor LED Screen |
| Supporting Legs | √ | √ | √ |
| Loading Capacity | 2 t/㎡ | 2 t/㎡ | 2 t/㎡ |
| Dedicated PC Cover | √ | √ | √ |
| High-transparency Acrylic Plate | √ | optional | optional |
| Protection Grade | IP40 | IP65 | IP65 |
| Lifespan | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| Maintenance Type | Front and Rear | Front and Rear | Front and Rear |

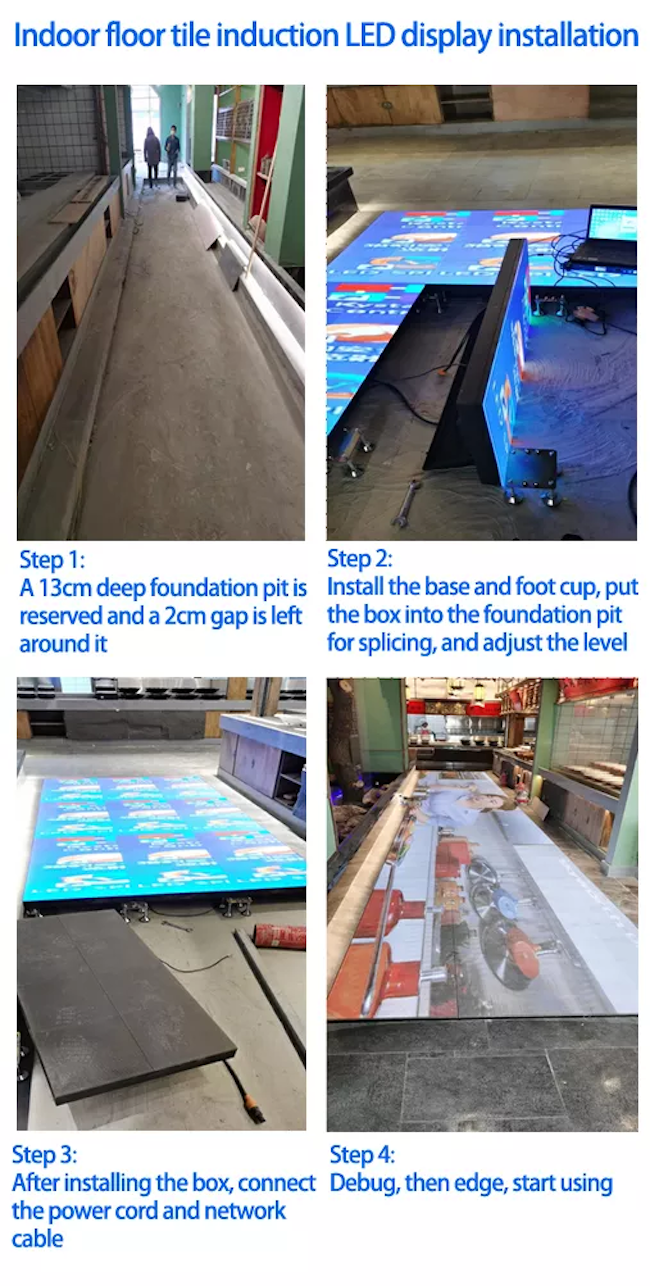

Product Image:
Our service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two
days, until you get the products. When you got thegoods, test them,
and give me a feedback.If you have any questions about the problem,
contact with us, we will offerthe solve way for you.
FAQ:
Q: How about your Warranty term?
A: Calculated from the goods to the customer, the warranty period
is 2 years, don’t worry, there is a problem with the module,
you can send it back to Shenzhen for repair.
Q: When will you make the delivery?
A: We can make the delivery within 3-5 working days for the led
modules and 10-15days for the led finished screen according to the
size and quantities of your order.
Q: your nearest shipping port
A: Shenzhen
