WMSJ P4.81 P3.91 P2.064 3d outdoor advertising led display screen
1R1G1B FULL color
Quick detail
1.Color: 1R1G1B/ Full Color
2.Pixels:4.81MM
3.LED type: SMD1921
4.Scan mode:1/13 scan
5.Module size:250*250MM
6.Power supply: 5V/60A
Product detail
1.Its light, transparent and thin structural design makes it easy
to install, maintain and use in a large area.
2.This display screen has the characteristics of strong luminous
brightness. The display content is still clearly visible when the
sun directly shines on the screen surface within the visible
distance.
3.High quality luminous components are the core materials of the
display screen, ensuring the service life of the product.
4.Using the computer to send the edited content to the system
control card, the edited content can be displayed, and the
operation is simple.
5.The core material of the display screen is high-quality luminous
components, and it adopts its own patented circuit board design,
which has a long service life.
6.This LED display has a high resolution, which can perfectly
represent the high-definition image quality and delicate colors.
7.Its performance is stable. The unique treatment of the anti
electromagnetic wave of the display screen is an important reason
why the display screen has been stable compared with other
displays. The use of distributed scanning technology and modular
design technology makes the display screen more reliable and
stable.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S |
| Module size | 250mm*250mm |
| Pixel pitch | 4.81mm |
| Pixel density | 43264dot/m2 |
| Pixel configuration | 1R1G1B |
| LED type | SMD1921 |
| IC | FM6353 |
| Pixel resolution | 52dots(W)*52dots(H) |
| Max Power consumpion | 60W |
| Module weight | 1.2kg |
| Drive type | Constant drive |
| Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs |
| Power supply | 5V/60A |
| Pixel per cabinet | 104*208 |
| Brightness of white balance | ≥5000cd/m2 |
| Best viewing distance | 4M～50M |
| The best perspective | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| Opration humidity | 10%-95% |
| Thickness | 85mm |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S |
| Max.Power consumption | ≤800W/S |
| Current | ≤20mA(single LED) |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | 800*600/1024*768 |

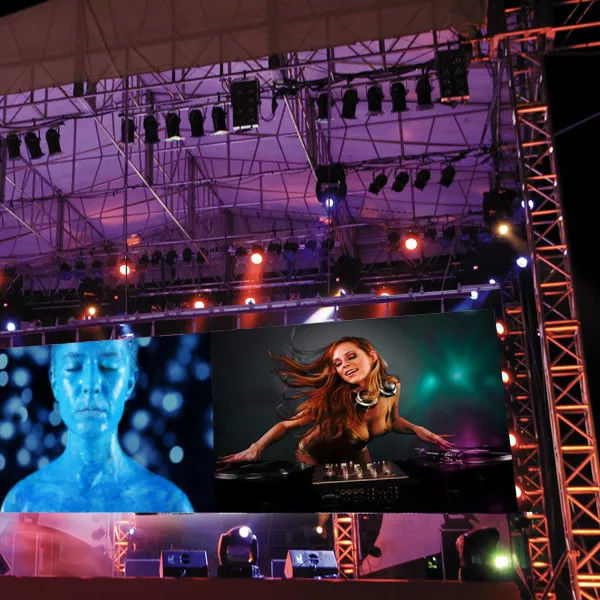

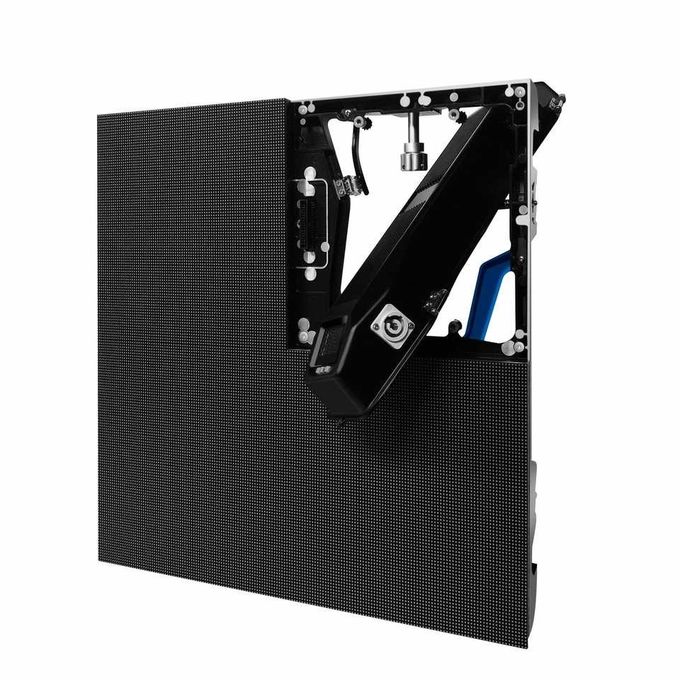

Product photo
FAQ
Q1.What's the pixel pitch for Outdoor LED Display Screen?
A:Outdoor(P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
Q2.LED display models are generally expressed in PX, such as P2 P3
P4.....P8, P10, what does this mean?
A:YP3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller,
led display resolution is higher.
Q3.What is the payment method?
A:As for the payment method, we generally adopt T/T delivery, or we
can make different plans according to different situations.
