WMSJ P4.81 P3.91 P2.064 3d outdoor advertising led display screen
module size 250*250mm
Quick detail
1.Color: 1R1G1B/Colorful
2.Pixels: 4.81mm
3.Module: 250MM*250MM
4.Cabinet: 500MM*500MM/500MM*1000MM
5.Module quantity: 8PCS
Product detail
1. The box design is standardized, which is better suitable for the
requirements of different pixel displays, and the box is lighter
and thinner, which is not only easy to install but also saves
transportation costs.
2.It uses high-quality luminous components as the core material of
the display screen, which fundamentally ensures the service life of
the product.
3.The performance of the product is stable. The unique treatment of
the anti electromagnetic wave of the display, the use of
distributed scanning technology and modular design technology, make
the display more reliable and stable.
4.It adopts high-quality light-emitting devices of the same batch,
with good flatness and high uniformity.
5.Seamless splicing, small splicing error, easy to install, can be
made into any shape according to the needs of users.
6.Use is compatible with async; When the control computer fails, it
does not affect the work and can still display playback normally.
7.This product is suitable for military and public safety, energy,
urban management, public information release platform,
transportation and transportation, radio and television, cinema,
enterprise video conference system, medical, education and other
fields of fixed installation occasions.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S |
| Module size | 250mm*250mm |
| Pixel pitch | 4.81mm |
| Pixel density | 43264dot/m2 |
| Pixel configuration | 1R1G1B |
| LED type | SMD1921 |
| IC | FM6353 |
| Pixel resolution | 52dots(W)*52dots(H) |
| Max Power consumpion | 60W |
| Module weight | 1.2kg |
| Drive type | Constant drive |
| Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs |
| Power supply | 5V/60A |
| Pixel per cabinet | 104*208 |
| Brightness of white balance | ≥5000cd/m2 |
| Best viewing distance | 4M～50M |
| The best perspective | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| Opration humidity | 10%-95% |
| Thickness | 85mm |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S |
| Max.Power consumption | ≤800W/S |
| Current | ≤20mA(single LED) |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | 800*600/1024*768 |

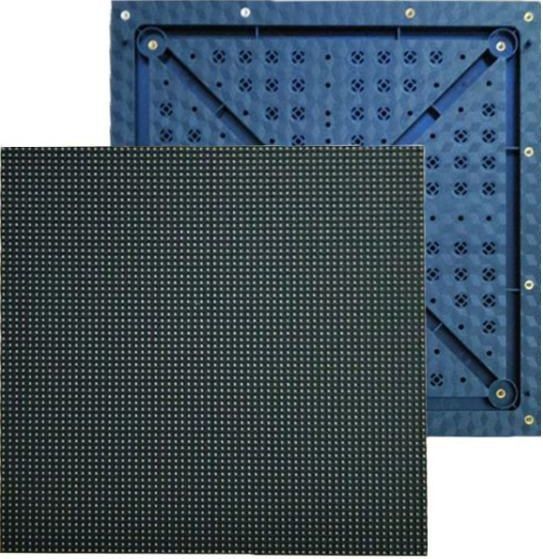

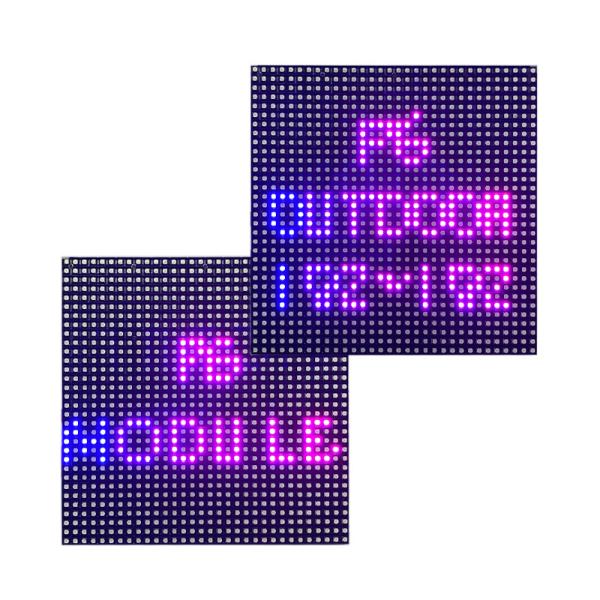

Product photo
FAQ
Q1.Do you have your own enclosuer factory?
A:Yes we do have our own enclosure factory,and we have the best
structural En-gineer,we hope to provide you with best screen and
shape, so OEM is also wel-come.
Q2.How is maintenance?
A:If there is 1 LED out, then we just take out of one single led
bar and change with the new one. No need to return back the whole
module. It is not only save the time but also save the freight.
Q3.What is your payment terms?
A:Payment terms:30% T/T deposit, 70% T/T before shipment.
