WMSJ P4.81 P3.91 P2.064 large outdoor display screen size 500*500mm
SMD 1921
Quick detail
1.Pixels:4.81mm
2.Color:full color red green
3.Pixel density:43264dot/m2
4.LED lamp: SMD1921
5.Best viewing distance:4-50M
Product detail
1.It is applicable to the video broadcast promotion of text,
graphics and multimedia programs.
2.The non-linear point by point correction technology makes this
LED display screen display more hierarchical content, clearer text
and better display effect.
3.Quality assurance: It is more convenient to install and maintain
by using domestic well-known brand luminescent materials and
high-quality IC chips.
4.Easy to operate, use the computer to edit the content sent to the
system control card, you can display the edited content, easy to
operate.
5.The box body is almost the same size, which is convenient for
assembly. After assembly, the surface is flat and the effect is
good.
6.This LED display has a high resolution, which can perfectly
display delicate colors and high-definition image quality.
7.Each LED has a consistent height and a large visual angle both
horizontally and vertically, which is suitable for environments
with wide horizontal distribution and large height drop.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S |
| Module size | 250mm*250mm |
| Pixel pitch | 4.81mm |
| Pixel density | 43264dot/m2 |
| Pixel configuration | 1R1G1B |
| LED type | SMD1921 |
| IC | FM6353 |
| Pixel resolution | 52dots(W)*52dots(H) |
| Max Power consumpion | 60W |
| Module weight | 1.2kg |
| Drive type | Constant drive |
| Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs |
| Power supply | 5V/60A |
| Pixel per cabinet | 104*208 |
| Brightness of white balance | ≥5000cd/m2 |
| Best viewing distance | 4M～50M |
| The best perspective | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| Opration humidity | 10%-95% |
| Thickness | 85mm |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S |
| Max.Power consumption | ≤800W/S |
| Current | ≤20mA(single LED) |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | 800*600/1024*768 |

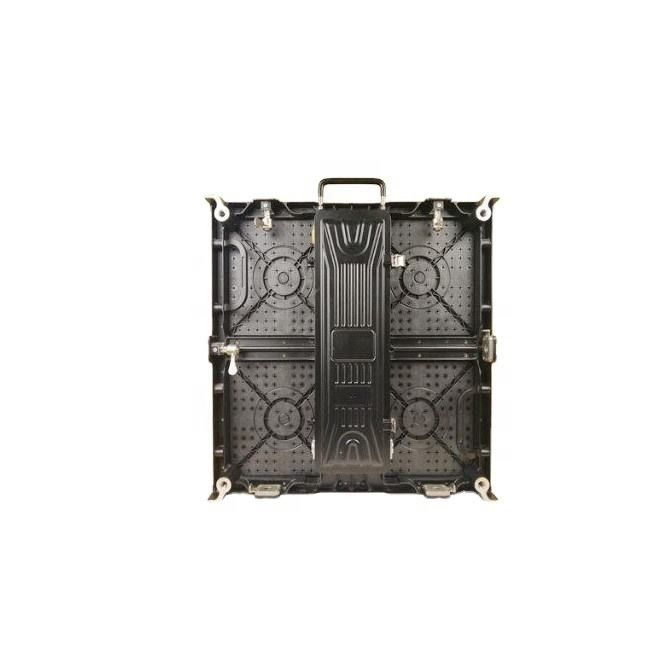

Product photo
FAQ
Q1.To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of the display, the main use, the
viewing distance, the scene photos, special requirements,then I can
provide you with a detailed list of quotations.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product
quality of our products and service.
Q3.Are you a manufacturer or trading company?
A:We are a manufacturing and trading company, with its own
independent production of products.
