WMSJ P4.81 P3.91 P2.064 LED display screen full color advertising
led display screen 1R1G1B
Quick detail
1.Color: 1Red 1Green 1Blue
2.Pixels:4.81mm
3.LED type: 1921
4.Scan mode:1/13 scan
5.Temperature: storage:-35℃～+85℃ work:-20℃～+50℃
Product detail
1.The design is novel, simple and generous, and its weight is
light, so it is convenient to load and unload. And it has a unique
black light design and fine photographic effect.
2.This product can adapt to the harsh climate, because it has a
sloping drainage design and a power box design with insulated PCB
board.
3.You can edit, add, delete and modify the text, graphics, images
and other information at will, which will be stored in the control
card. The information will be displayed automatically according to
the program list.
4.Within the visible distance, when the sun shines directly on the
screen surface, the content displayed on the LED display screen is
still clearly visible.
5.This LED display screen has a long life because it uses
high-quality luminous components as its core materials.
6.This product adopts non-linear point by point correction
technology, with clearer text, stronger sense of hierarchy and
better display effect.
7.The 160 ° wide viewing angle is consistent with the height of
each LED, and there is a large viewing angle both horizontally and
vertically, which is suitable for environments with wide horizontal
distribution and large height drop.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S |
| Module size | 250mm*250mm |
| Pixel pitch | 4.81mm |
| Pixel density | 43264dot/m2 |
| Pixel configuration | 1R1G1B |
| LED type | SMD1921 |
| IC | FM6353 |
| Pixel resolution | 52dots(W)*52dots(H) |
| Max Power consumpion | 60W |
| Module weight | 1.2kg |
| Drive type | Constant drive |
| Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs |
| Power supply | 5V/60A |
| Pixel per cabinet | 104*208 |
| Brightness of white balance | ≥5000cd/m2 |
| Best viewing distance | 4M～50M |
| The best perspective | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| Opration humidity | 10%-95% |
| Thickness | 85mm |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S |
| Max.Power consumption | ≤800W/S |
| Current | ≤20mA(single LED) |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display Mode | 800*600/1024*768 |

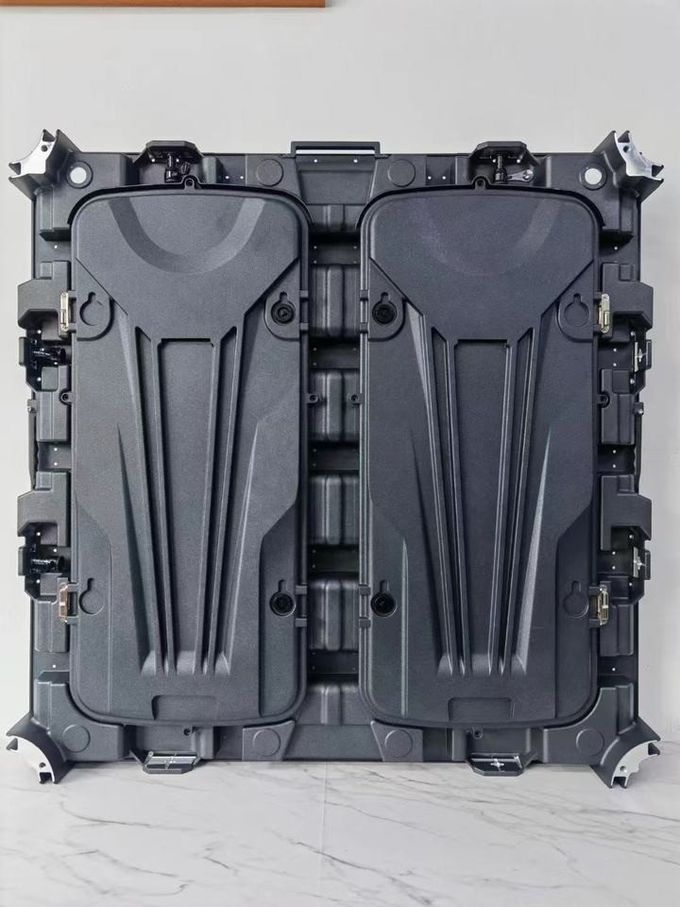

Product photo
FAQ
Q1.What's the pixel pitch for Outdoor LED Display Screen?
A:Outdoor(P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
Q2.Do you offer a guarantee for the products?
A:Yes, we offer 1.5 years warranty to our products.
Q3.What Can You Buy From US?
A:LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
