Indoor High Brightness P2.6-5.2 HD Glass Windows Transparent LED
Display Panel
Features:
1. The transparent LED screen is also called the LED glass curtain
wall screen; the transparent screen unit modules can be hoisted,
stacked, and can be spliced into a large area according to the size
of the installation location.
2. It is a new product developed based on the traditional LED
display, which consists of a single LED strip;
3. High transparency; the transparency is 60%～80%, the transparency
is high, and it has little effect on the lighting of the building;
4. Good heat dissipation performance and light weight;
5. Suitable for building facades, suitable for installation in
front of glass curtain walls.
6. Light weight, ultra-thin, convenient installation and
maintenance, no structure, cost saving and efficiency improvement.
7. Optional maintenance before or after the screen increases the
adaptability to installation conditions;
Application:
Widely used in glass curtain walls, shop windows, shopping malls,
terminal buildings, automobile exhibition halls, exhibition halls,
business halls, 4S shops, office glass curtain walls, etc.
Description:
1. Durable and stable
2. NO structure for small size
3. Easy installation & maintenance
4. Customized size and ship
5. High transparency
Specification:
| Technical parameters |
| 1,Pixel | Pixel pitch:3.91 -7.8 mm
Color:Red, green,blue
Color combination:1R1PG1PB
Density:32768 dot/m2 |
| 2,Module | Module resolution: width 128 × height 16
Module size: 500mm×125mm
Total image number of unit board: 2048 dots/pcs |
| 3,Whole screen | Horizontal viewing angle of the screen: 90°-110°
Vertical viewing angle of the screen: 45°- 90°
Best viewing distance: 3～200M
Storage temperature: -40℃ ～ +85℃
Working temperature: -25℃ ～ +55℃
Relative humidity: 10%～95%RH
Screen weight: 7 kg/㎡
Cabinet size: 1000MM*500MM
Light transmittance: ≥70%
Material: die-cast aluminum |
| 4,Power | Working voltage: 220V±15%
Power supply: 5V40A200W
Average power consumption: 400～1000 W/㎡ (related to the video
source being played)
Maximum power consumption: 1000W/㎡
Average power: 400W/㎡
Power supply requirement: 220VAC±10%, 50Hz |
| 5,The main technical parameters | 1) Drive device: constant current drive IC
2) Drive mode: 16 scans
3) Refresh frequency: ≥1920Hz
4) Brightness: ≥1000d/m2
5) Control system adopted: synchronous control system
6) Mean time between failures: ≥10000 hours
7) Screen life: ≥100000 hours; continuous working time: ≥48 hours
8) Flatness: between any adjacent pixels ≤0.5mm; module splicing
gap <1mm;
9) Blind spot rate: <0.0001 (discrete state)
10) Protection level: IP43
11) Protection performance: windproof, shockproof, flame retardant |

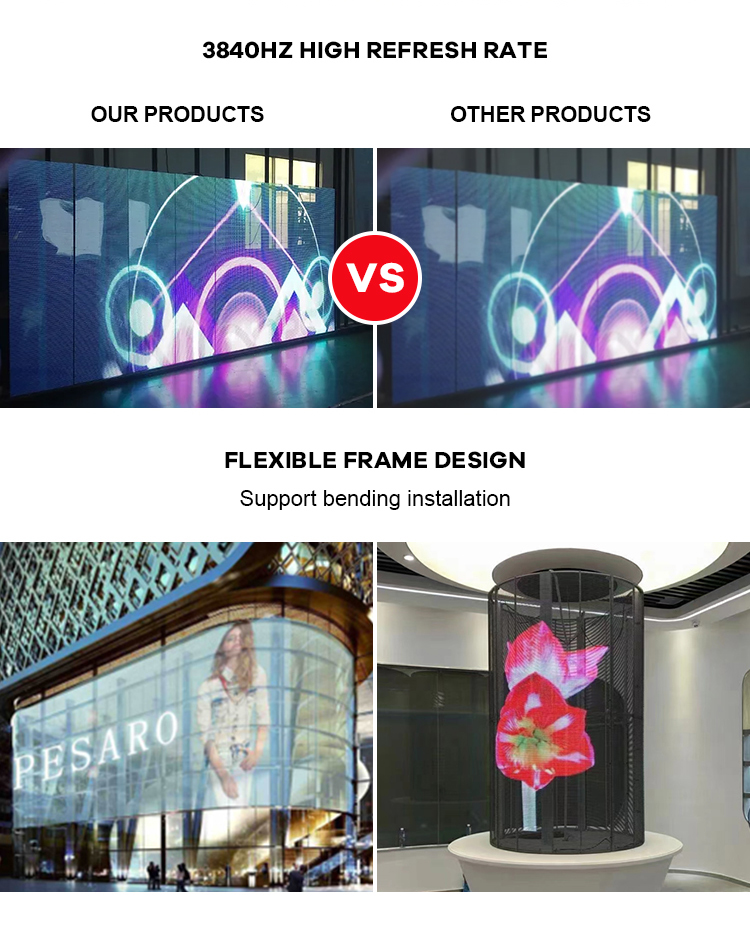

Product Picture:
Advantage:
1. Brightness uniformity less then 5%, and the maximum uniformity
can reach 1%
2. On line pixel inspection function : inspect each disabled pixel
and remote transmission
3. Automatic brightness adjustment: adjust the brightness of the
screen according to the ambient brightness, thus avoiding the waste
of brightness and reducing power consumption
4. Large horizontal and vertical viewing angle
5. Led module can remain constant in the hight and low temperature
environment
6. Gray scale of 16 bits, and contrast of 1000:1
After-sales service:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and
Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our
well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales
area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. Ledmanner assists with trainning and technical support for
clients in the factory. This service is free of charge.
9. Ledmanner offer oversea technical support by well-trained
engineers if clients required. The relevant costs charge by
clients.
FAQ:
Q1: Are you the manufacturer or trading company? and where is your
factory?
A: we are professional manufacturer devote in producing Led
outdoor, Led indoor display, rental display, stadium screen,
advertising screen and stage screen etc. You are warmly welcome to
visit our factory to learn the technical and maintenance skills and
everything you need in our factory.
Q2: May be we will need some samples, what is the lead time of
samples and lead time of order?
A2: We will arrange your sample of the charges within 3-5 days and
arrange your order within 15-20 days after receiving your salary.
Q3: How could us arrange order?
A: pls send your inquiry to us--click the "send" in below, then let
us confirm all details, you can click "start order" in above,
or we send you order link for your payment.
Q4: Which payment method does your company accept?
A: We support T/T or Trade Assurance. For more payment methods,
please contact our customer service.
